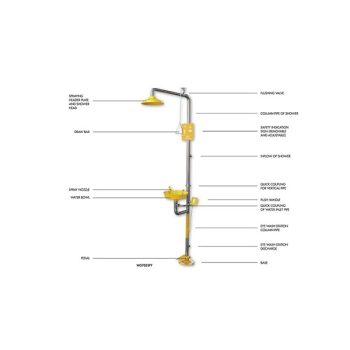

Emergency Eyewash and Drench Shower
R17 810.00 Excl. VAT
- Description
- Specifications
Description
- Materials: ABS plastic + 304 stainless steel
- Main pipe fittings adopt stainless steel materialised oil resistance, acid proof, alkali prevention and saline solution performances
- Push handle and pedal switches are at your option for flexible control of switch and easy operation; the flashing value controlled by the draw bar of the sprayer can be opened in a second and kept open with no need for hand holding
- Living water supplies
- It complies with regulations of ANSI/SES on emergency eye wash station and showering equipment – ANSI Z358-2012
- The inlet of eye wash station he inlet of vertical eye wash station is 1450mm from the ground
- The outlet of eye wash station is 210mm from the ground
- Main pipe fittings: 304 series of stainless steel
- Water basin: ABS plastic; draw bar, spraying header, cross bar, vertical
- Column pipe: baking varnish galvanised steel; base: aluminum casting
- Shower head: 240mm (9.4) 304 series of stainless steel. The shower head and spraying header are 210cm from the ground
- Spraying header plate: ABS plastic; dimension: 255×75 (diameter, height/mm)
- Valve: 1 inch female thread, stainless steel, full flow continuous opening ball valve
- Initiating device: galvanised steel triangular draw bar
- Spraying header: 1 inch baking varnish galvanised tube
- Column pipe of sprayer: 1+1/4 inch baking varnish galvanised tube
- Inflow of sprayer: 1 inch male thread
- Flow rate of sprayer: up to 75.6L/min under 1.4kgf/cm2 pressure (delivers 300 gallons of water in 15min)
- Eye wash station is equipped with pneumatic spray nozzle and continuous opening ball varnish valve controlled by paddle-type handle
- Quick coupling: vertical pipe 42mm, water inlet pipe 20mm
- Water bowl: ABS plastic; dimension: 320×95 (diameter, height/mm)
- Quick coupling: vertical pipe the diameter is 42mm, 304 stainless steel; for water inlet pipe, the diameter is 20mm, 304 stainless steel
- Spray head: 304 series of stainless steel, with dust cover; green ABS plastic eye/face wash nozzle, with self-closing nozzle protection cover, reducing pollution probability
- The spraying header is 100cm from the ground
- 1/2 inch female thread, stainless steel materials
- Inlet of eye wash station: 1/2 inch female thread
- Discharge of eye wash station: 1 inch female thread
- Flow rate of eye wash station: it is up to 11.4L/min under 2.1 kgf/cm2 pressure (delivers 45 gallons of water in 15min)
